Product Parameters

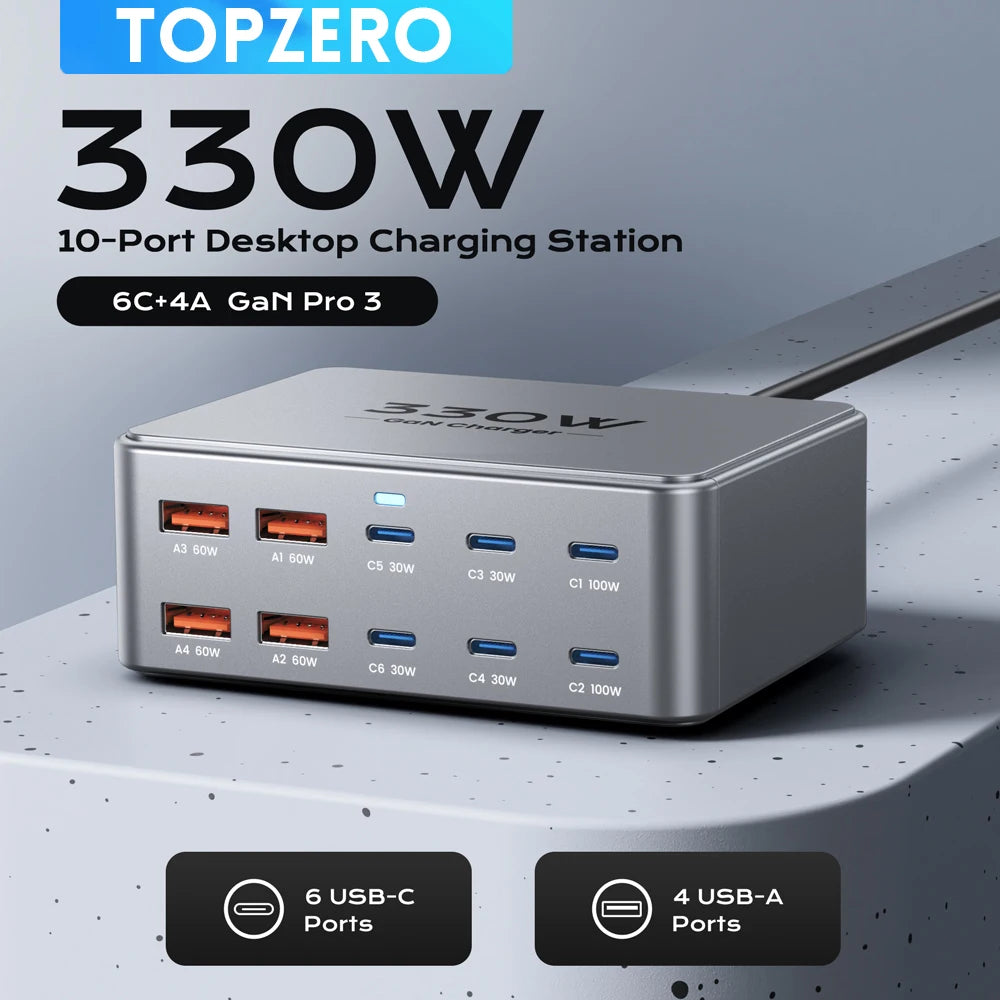

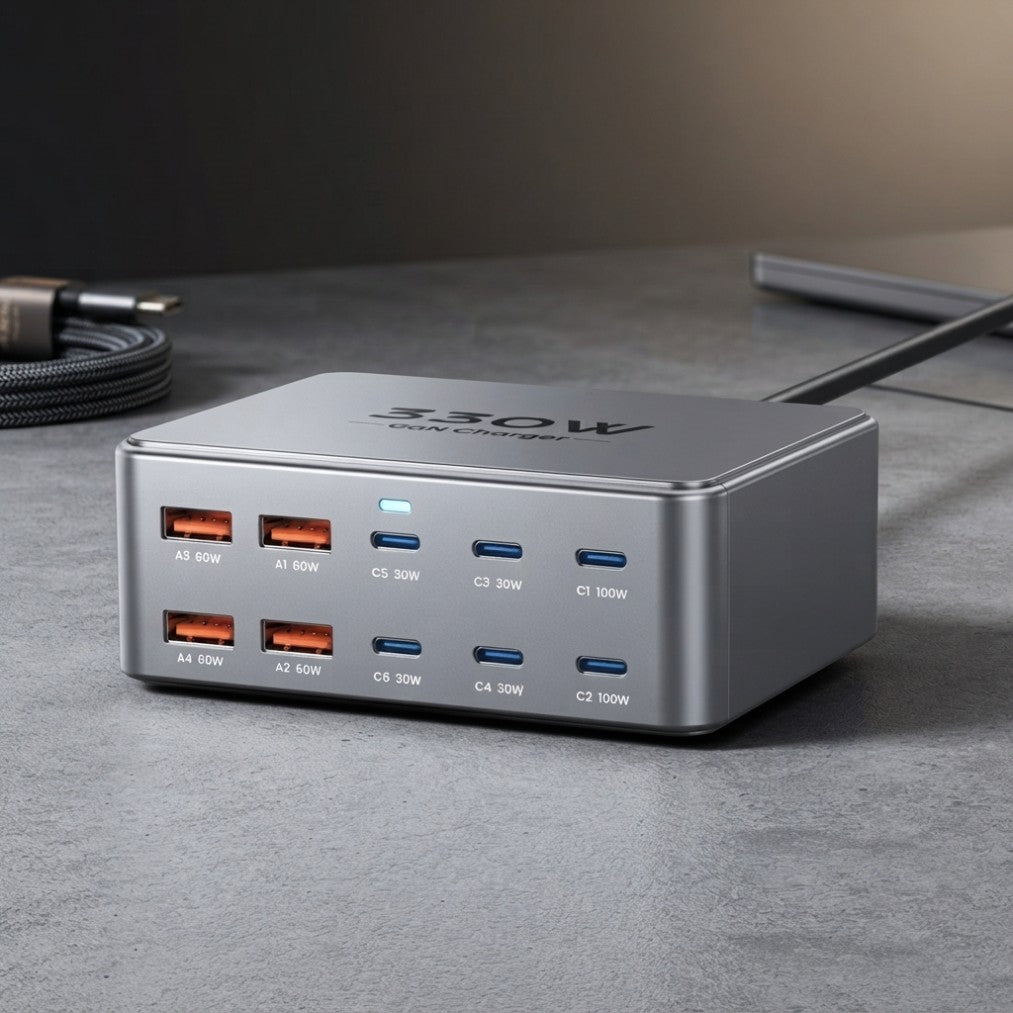

330W 10 USB Desktop GaN Charger
Model No : AS330W
Total Power : 330W Max
USB Ports : 10-Ports (6 USB C+4 USB A)
Input : AC 110V~240V 50-60Hz 2.5A
USB Output :
USB-C1 : 3.3V~21V-5A / 5V3A / 9V3A /12V3A / 15V3A / 20V5A (100w Max)
USB-C2 : 3.3V~21V-5A / 5V3A / 9V3A /12V3A / 15V3A / 20V5A (100w Max)
USB-C3 : 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A(30w Max)
USB-C4 : 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A(30w Max)
USB-C5 : 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A(30w Max)
USB-C6 : 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A(30w Max)
USB-A1 : 5V-3A / 9V-3A / 12V-3A / 20V3A 60W Max
USB-A2 : 5V-3A / 9V-3A / 12V-3A / 20V3A 60W Max
USB-A3 : 5V-3A / 9V-3A / 12V-3A / 20V3A 60W Max
USB-A4 : 5V-3A / 9V-3A / 12V-3A / 20V3A 60W Max

Note:

1.This product only supports fast charging protocols such as PD3.0, PPS, QC3.0, AFC, FCP, and SCP. If your device uses other fast charging protocols, it will not be able to achieve fast charging. Additionally, the fast charging cable can also affect the charging speed. Before testing, make sure to confirm what fast charging protocol your charging cable supports and what the maximum amperage of the cable core is

2.It is normal for multiple devices to enter the charging state again when connected to other devices during charging, as some circuits are shared. For example, when a device is in the fast charging state of 9V, 12V, and 20V, and an additional device is connected at this time, the circuit will split and reduce the voltage. Some devices will detect the voltage change and reconnect to the configured voltage for charging
