1.Camera:
Image Sensor:2 × 1/1.8" Progressive Scan CMOS
Max. Resolution:5120 × 1440
Min. Illumination:Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time:1/3 s to 1/100, 000 s
Angle Adjustment:Pan: -30° to 30°, tilt: -75° to 75°
2.Lens:
Lens Type:Fixed focal lens, Dual lens: 4 mm

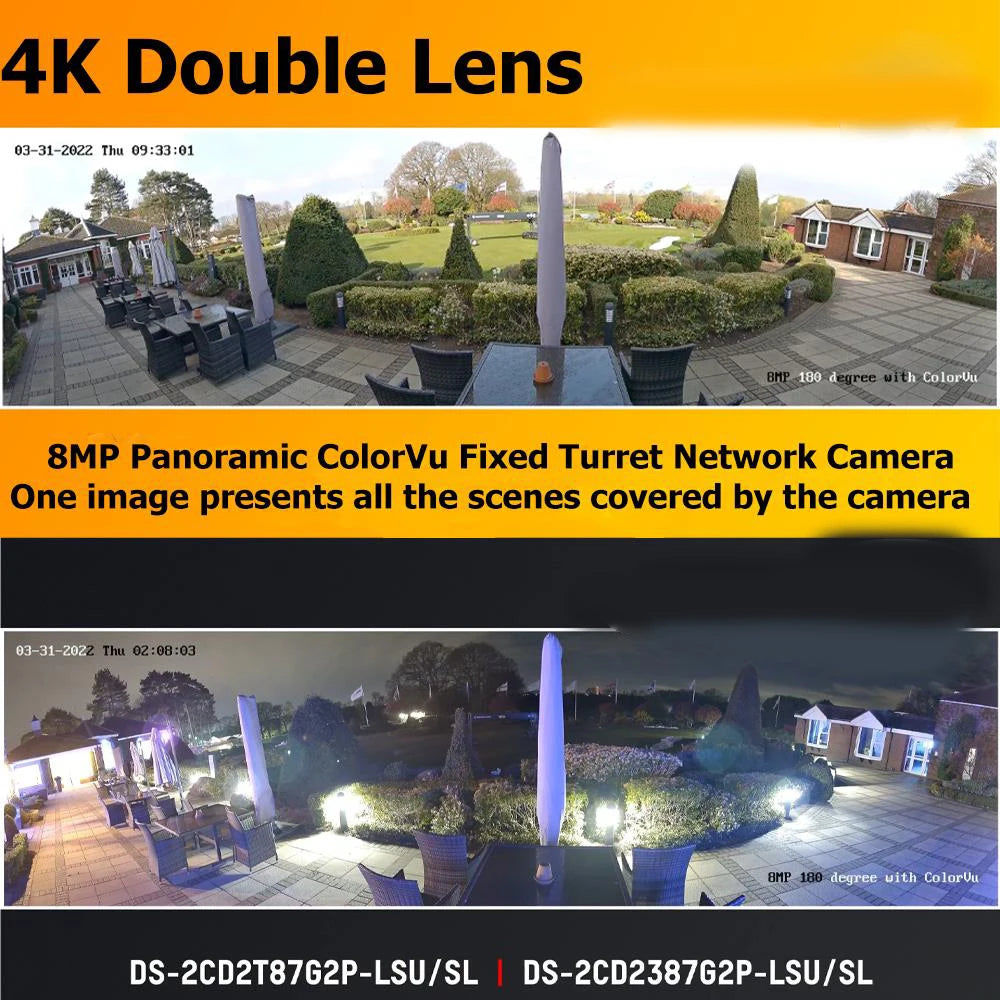

Focal Length & FOV:Horizontal FOV: 180° ± 10°，Vertical FOV: 44°
Lens Mount:M16
Iris Type:Fixed
Aperture:F1.0
Depth of Field:3.6 m to ∞
3.DORI:
DORI:4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
4.Illuminator:
Supplement Light Type:White Light
Supplement Light Range:Up to 30 m
Smart Supplement Light:Yes
5.Video:
Main Stream:
When WDR is On:50 Hz: 12.5 fps (5120 × 1440),60 Hz: 15 fps (5120 × 1440)
When WDR is Off:50 Hz: 20 fps (5120 × 1440),60 Hz: 20 fps (5120 × 1440)
Sub-Stream:
When WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272),60 Hz: 15 fps (1920 × 536, 960 × 272)
When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272),60 Hz: 20 fps (1920 × 536, 960 × 272)
Video Compression:Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate:32 Kbps to 16 Mbps
H.264 Type:Baseline Profile, Main Profile, High Profile
H.265 Type:Main Profile
Bit Rate Control:CBR, VBR
Scalable Video Coding (SVC):H.264 and H.265 encoding
Region of Interest (ROI):1 fixed region(s) for main stream
6.Audio:
Audio Type:Mono sound
Audio Compression:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate:8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering:Yes
7.Network:
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,WebSockets:
Simultaneous Live View:Up to 6 channels
API:Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host:Up to 32 users,3 user levels: administrator, operator, and user
Security:Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage:NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), NVR,Together with high-end HIK memory card, memory card encryption and health detection are supported.
Client:iVMS-4200, Hik-Connect, Hik-Central
Web Browser:Plug-in required live view: IE 10, IE 11 ,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
8.Image:
Image Parameters Switch:Yes
Image Settings:saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client,software or web browser
Day/Night Switch:Day, Night, Auto, Schedule
Wide Dynamic Range (WDR):130 dB
SNR:≥ 52 dB
Image Enhancement:BLC, HLC, 3D DNR
9.Interface:
Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage:Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256GB
Built-in Microphone:Yes
Built-in Speaker:Max. power consumption: 1.2 W, max. sound pressure: 10 cm: 95 dB
Audio:
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm:1 input, 1 output (max. 24 VDC, 1 A)
Reset Key:Yes
10.Event:
Basic Event:Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output,exception
Smart Event:Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage:Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
11.Deep Learning Function:
Perimeter Protection:Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
12.General:
Power:12 VDC ± 25%, 0.79 A, max. 9.5 W, Ø5.5 mm coaxial power plug,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.29 A to 0.18 A, max. 10.5 W
Material:Base: metal, cover: metal
Dimension:Ø155 mm × 155.3 mm (Ø6.1" × 6.1")
Package Dimension:230 mm × 230 mm × 230 mm (9" × 9" × 9")
Weight:Approx. 1110 g (2.4 lb.)
With Package Weight:Approx. 1900 g (4.2 lb.)
Storage Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions:-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function:Anti-flicker, heartbeat, password reset via email, password protection, one-key reset
Flashing Light:Yes
13.Approval:
EMC:FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
Environment:CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
Protection:IP67: IEC 60529-2013
