SPECIFICATIONS
Brand Name: tedeligo
Certification: FCC,ce,ROHS
Choice: yes
Control method: RF + WiFi + Voice
Controller size: 40*40*22 mm
Current: 16a
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Features: 5 channle in one remote, Timing function, % position control
High-concerned chemical: None
Is Smart Device: Yes
Item Type: SWITCHES
Material: Plastic
Model Number: Tede STC002, curtian motor garage control module work with Moes,Diese
Origin: Mainland China
Remote Distance: RF control support 30m in door
Remote battery: 1*27a12v(included)
Remote size: 110*38 mm
Rf frequency: 433MHz 1527 learning code
Switch Type: Remote Control
Voice: work with Alexa Google Assistant Home
Wall switch battery: 1*27a12v (included)
Wall switch size: 86*86 mm
Warranty: 1 year wifi rf curtain switch and rf remote transmitter wallswitch
WiFi standard: 2.4GHz IEEE 802.11 b/g/n
Wifi competitable: Tuya Smart Life app
semi_Choice: yes

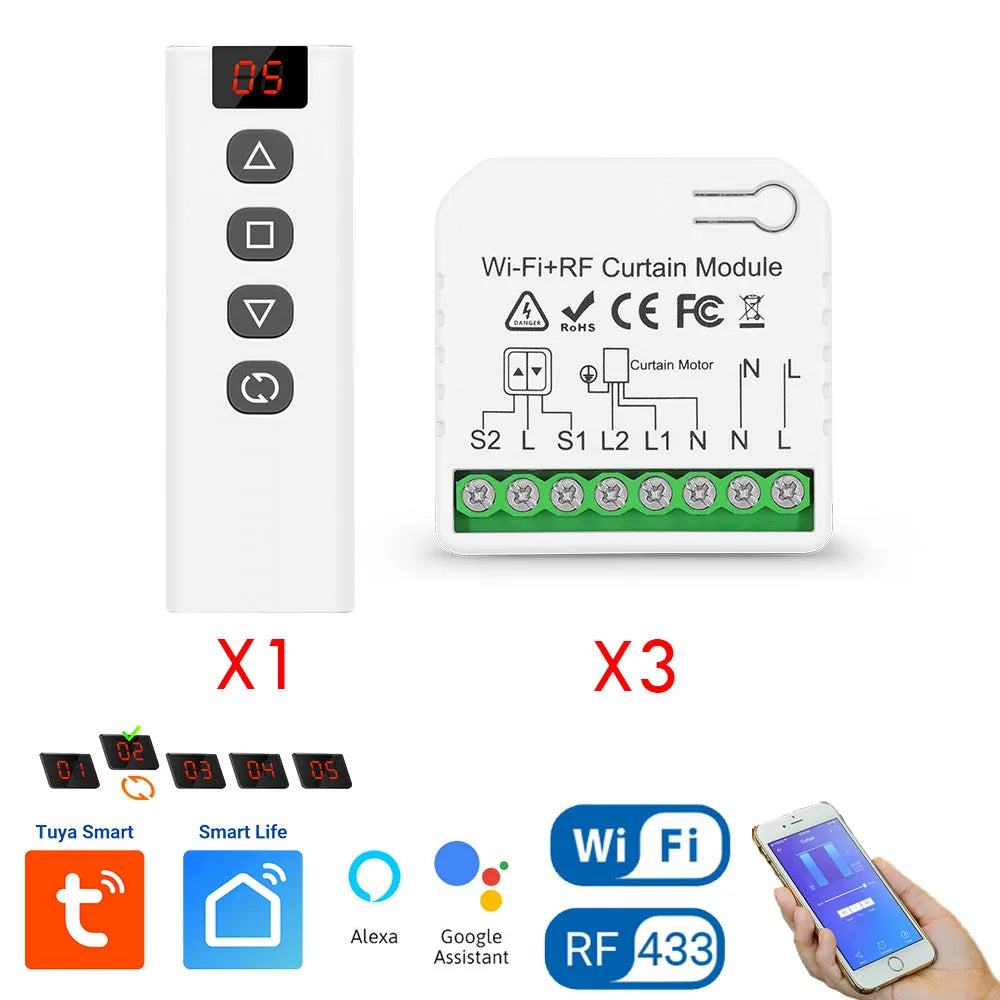

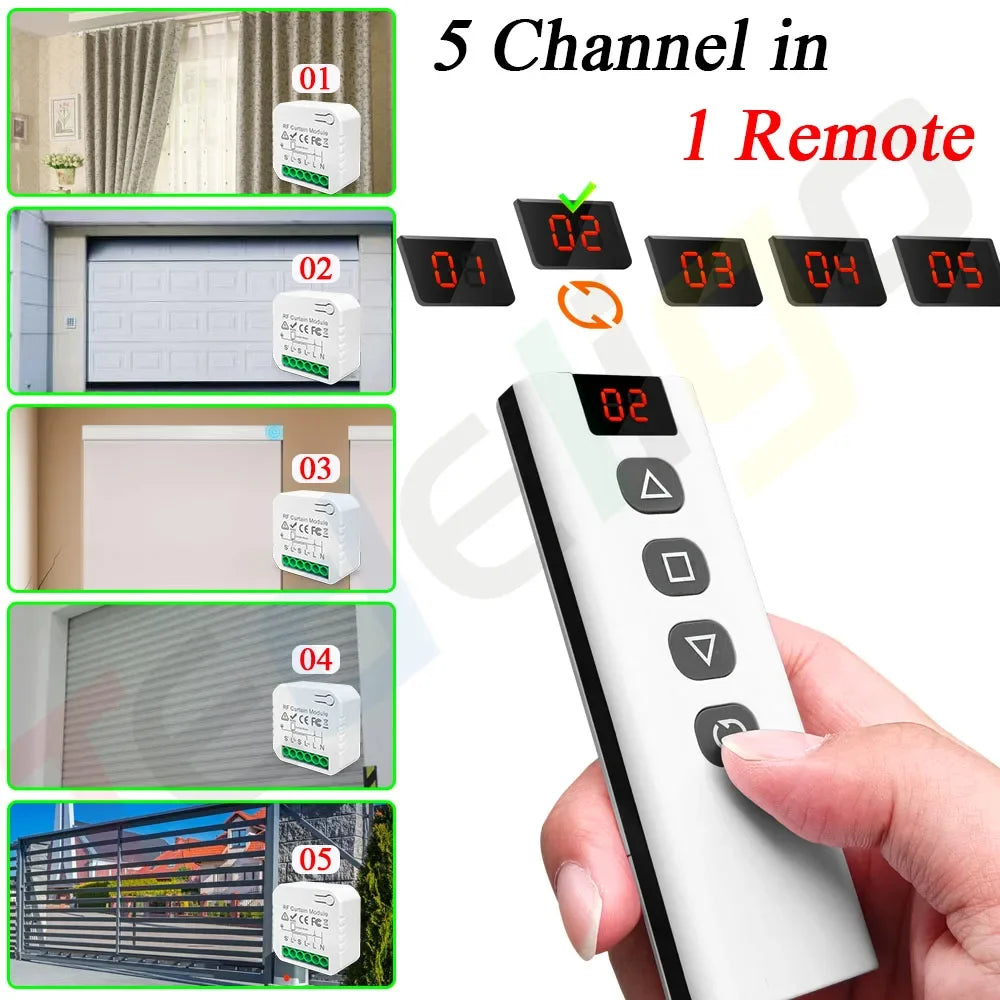

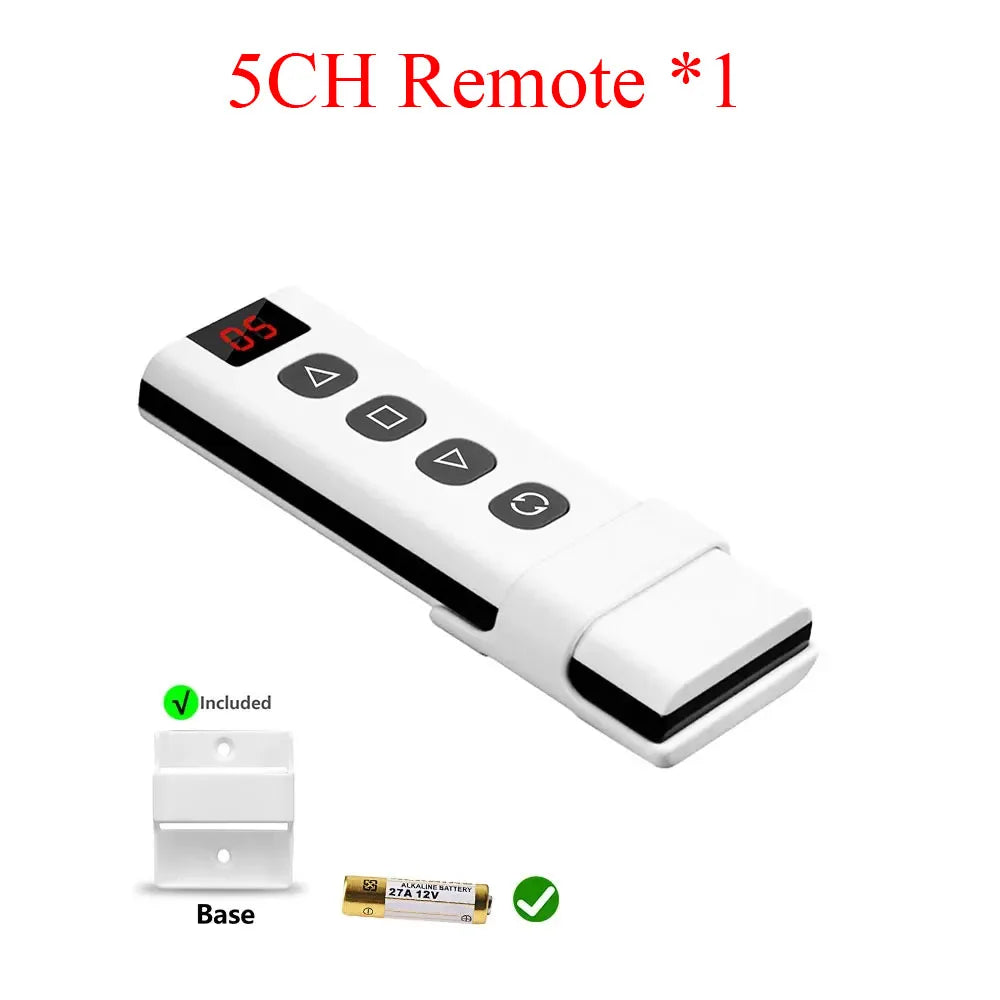

New 5 Channel in on remote, use one remote to control five curtain switches at same time
1.You can buy this 5 Channel remote as a master controller, and buy 1 channel remote as a sub controller
2.Compared to previous remote, this remote includes battery, which is more convenient to use
New Curtain switches, easier to connect
Product Application Area
Products can be used to control curtains,motors,roller shutters,blinds.
Products can used indoor, home ,office,market, factory,etc

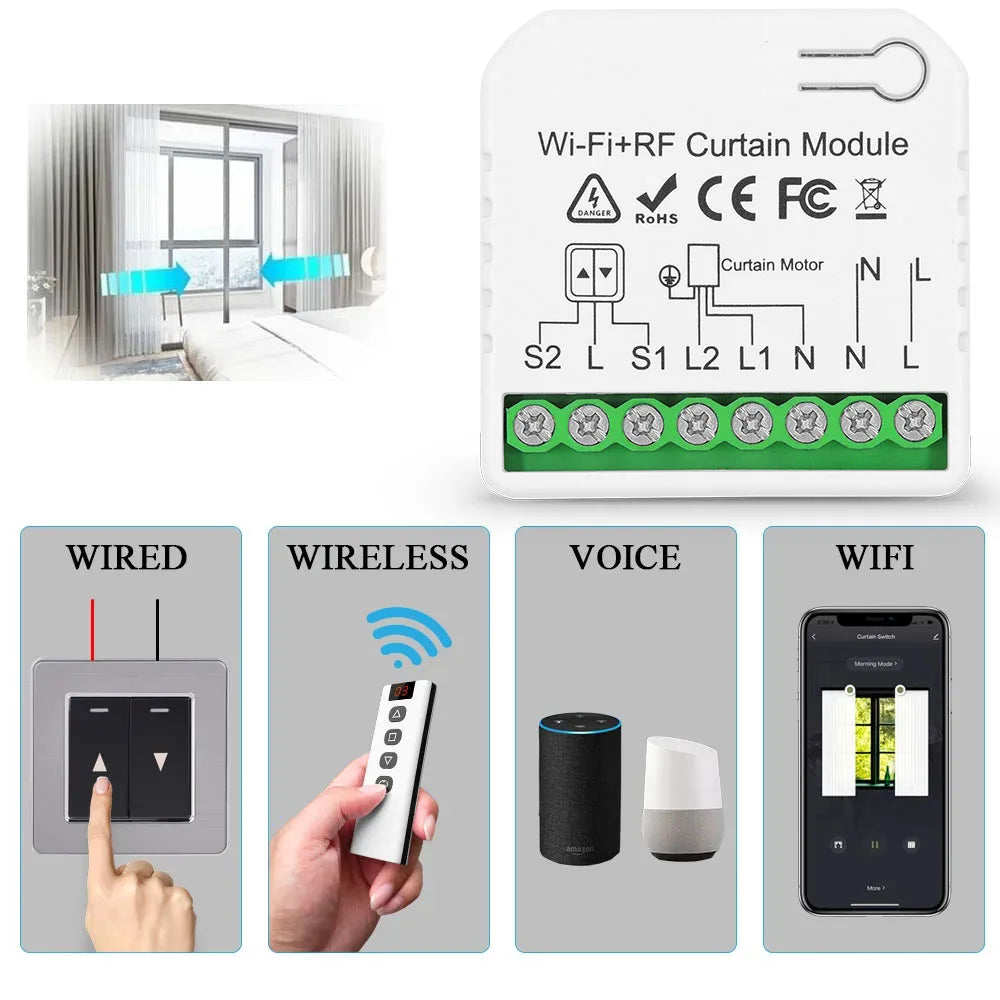

Support four control ways
1.Traditional wall switch wired control
2.Rf wireless remote control / wall switch(open,pause,close)
3.WiFi app control
4.Voice control

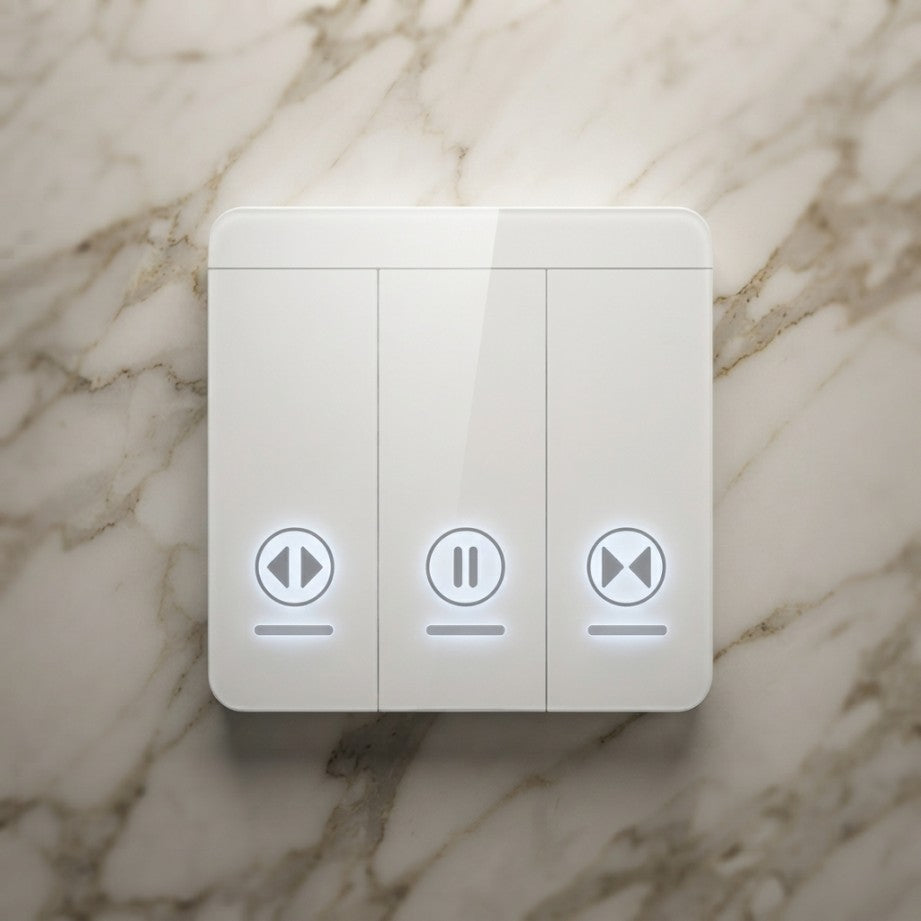

Work with your home traditional wall switch
Please follow our product manual to connect with your traditional wall switch,then you can control it by pressing buttons

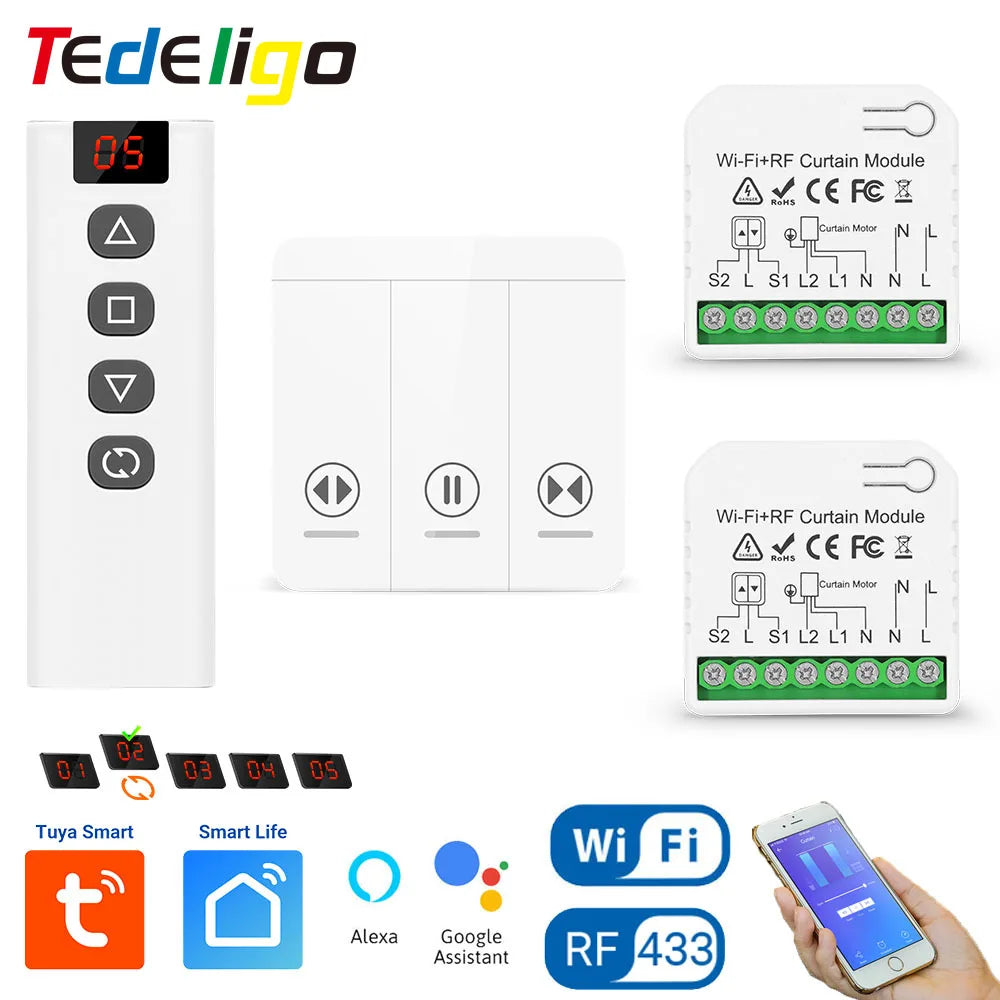

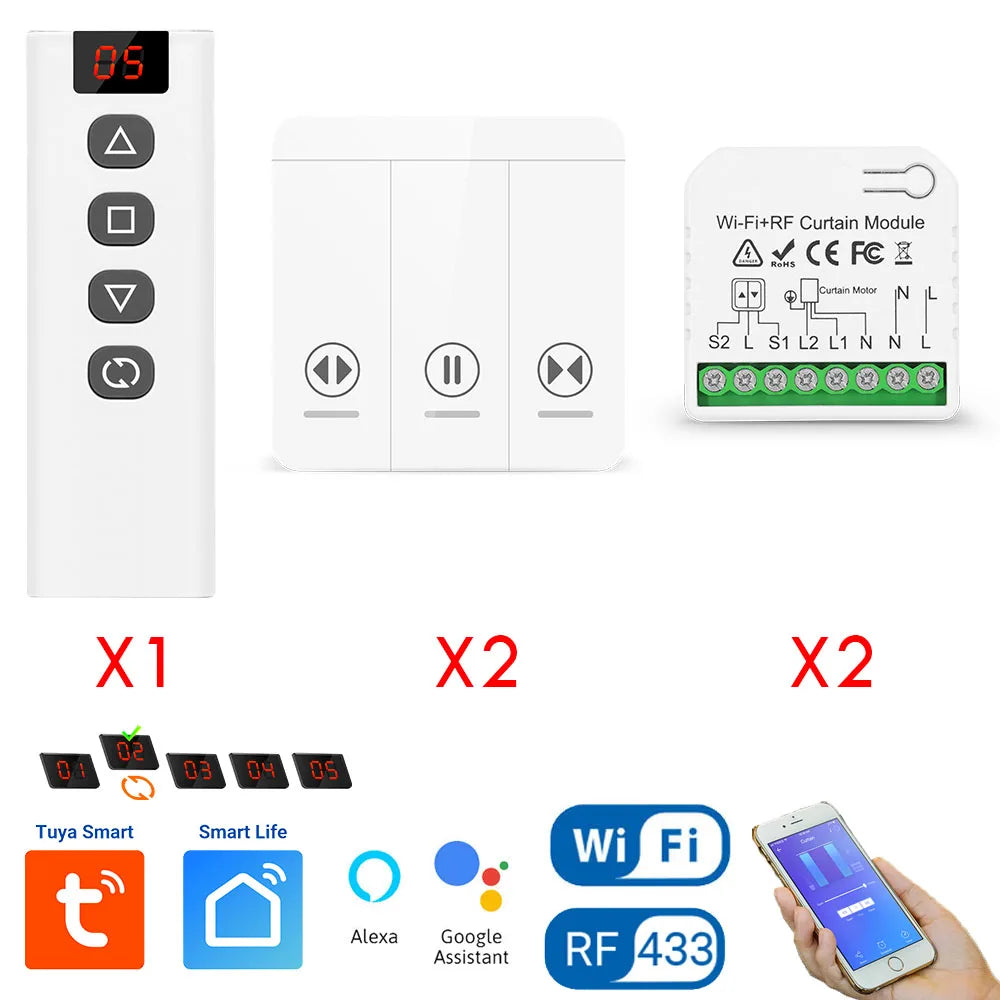

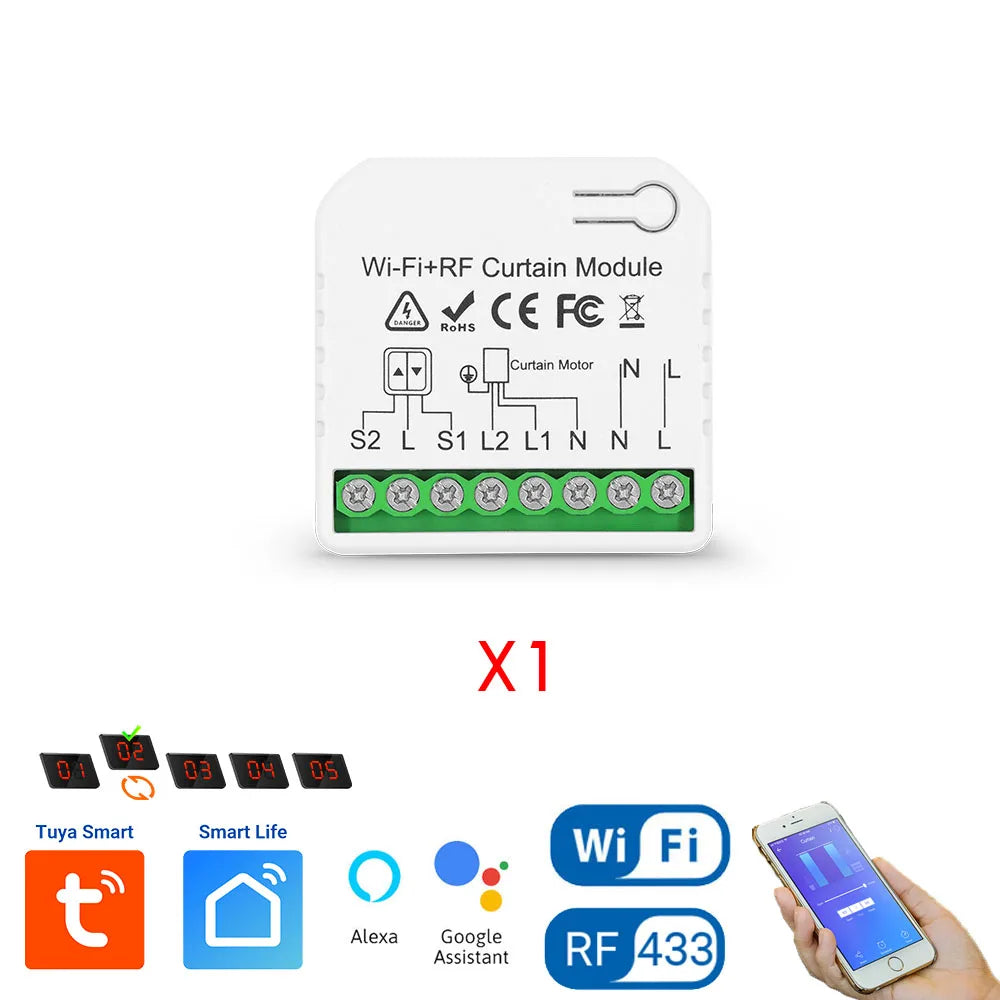

RF+WiFi smart curtain switch module with RF remote control switch
Rf remote has base,youcan stick on the wall
Rf signal can support about 50m range in open space.It can pass through walls
After you connected with power and device,you need to pair with remote first.You can find how to pair below
WiFi app control with timing function,group control function
You need to download Tuya/Smart life app first
You can set up schedules on your phone, open and close curtains automatically
you can share with your family numbers to use many phones control many modules
Voice control with Alexa/Google assistant,google home
Hands-free voice control.This module compatible with alexa,make your life smarter
Fmaily share, multi control
For wifi cotnrol: you can share this device to your home family numbers to achieve multi control
For rf control: one module can be controlled by almost 5 pcs remotes.You need to pair them one by one

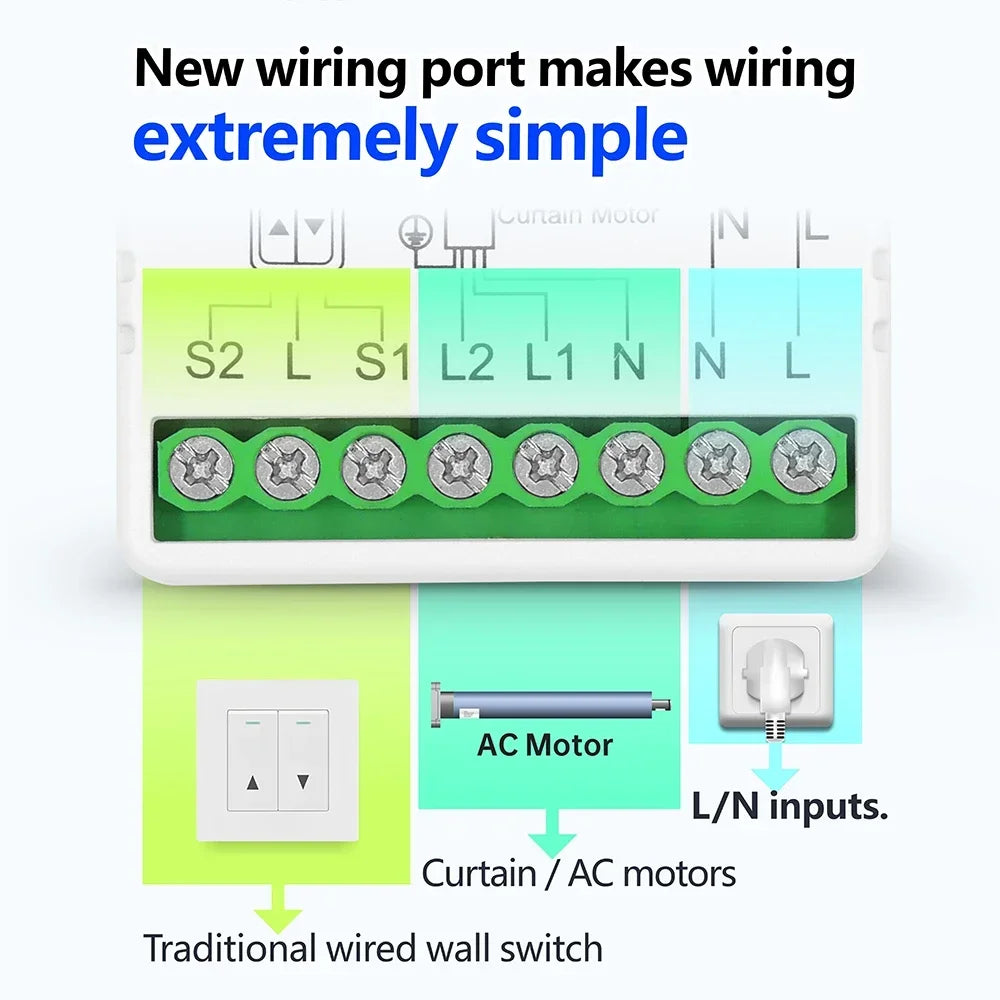

How to connect
There are two connection ways depends on if you have a traditional wall switch or not.Please take a look on this picture

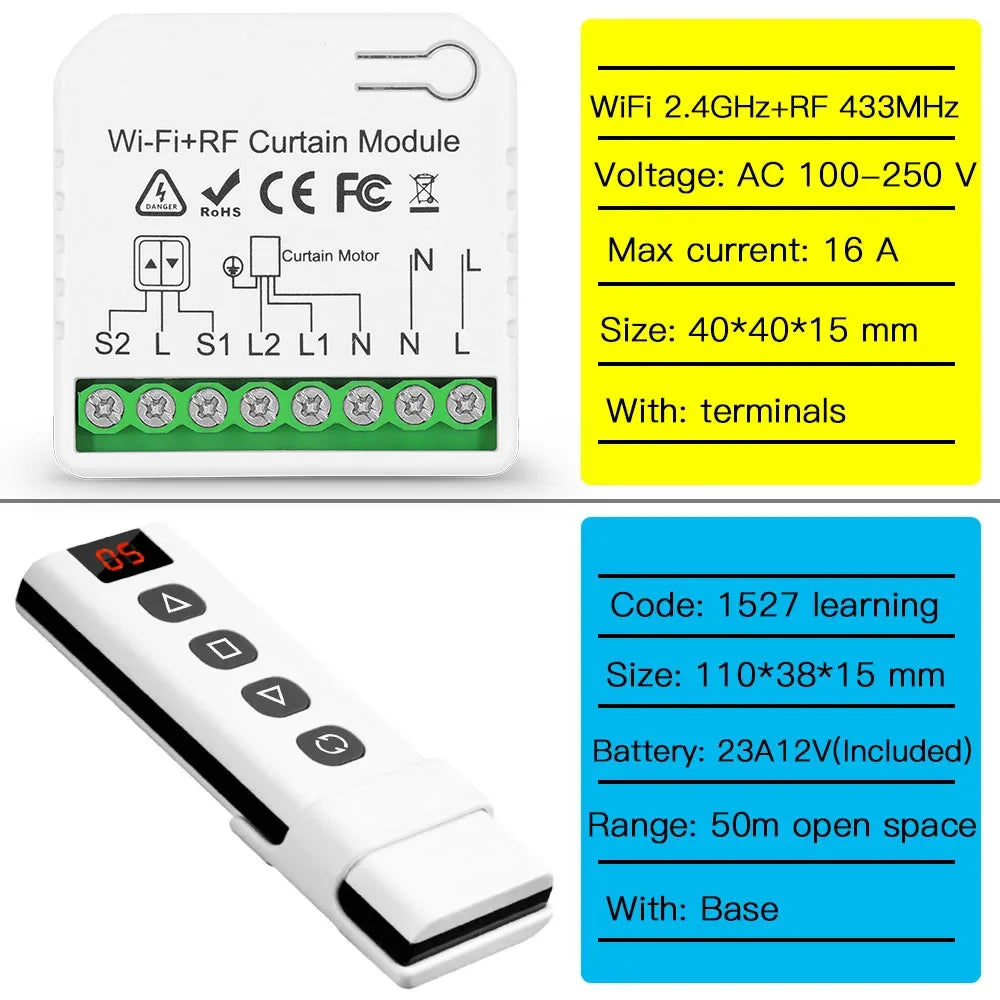

Controller parameter
Input Voltage: AC 100V~240V
Size:45*45*20 mm
RF Frequency: 433MHz
WIFI: IEEE 802.11 b/g/n
Max current: 16Amp
Receiving Sensitivity: >97dbm
Color: White (Outside Shell)
Rf Remote parameter
RF frequency : 433MHz
Size:110*40*15mm
Support encoding : 1527 Leaning code
Remote distance : up to 50 meters (theoretical distance)
Battery : 23A 12V(Battery included )
Screw: Include
Base: Include

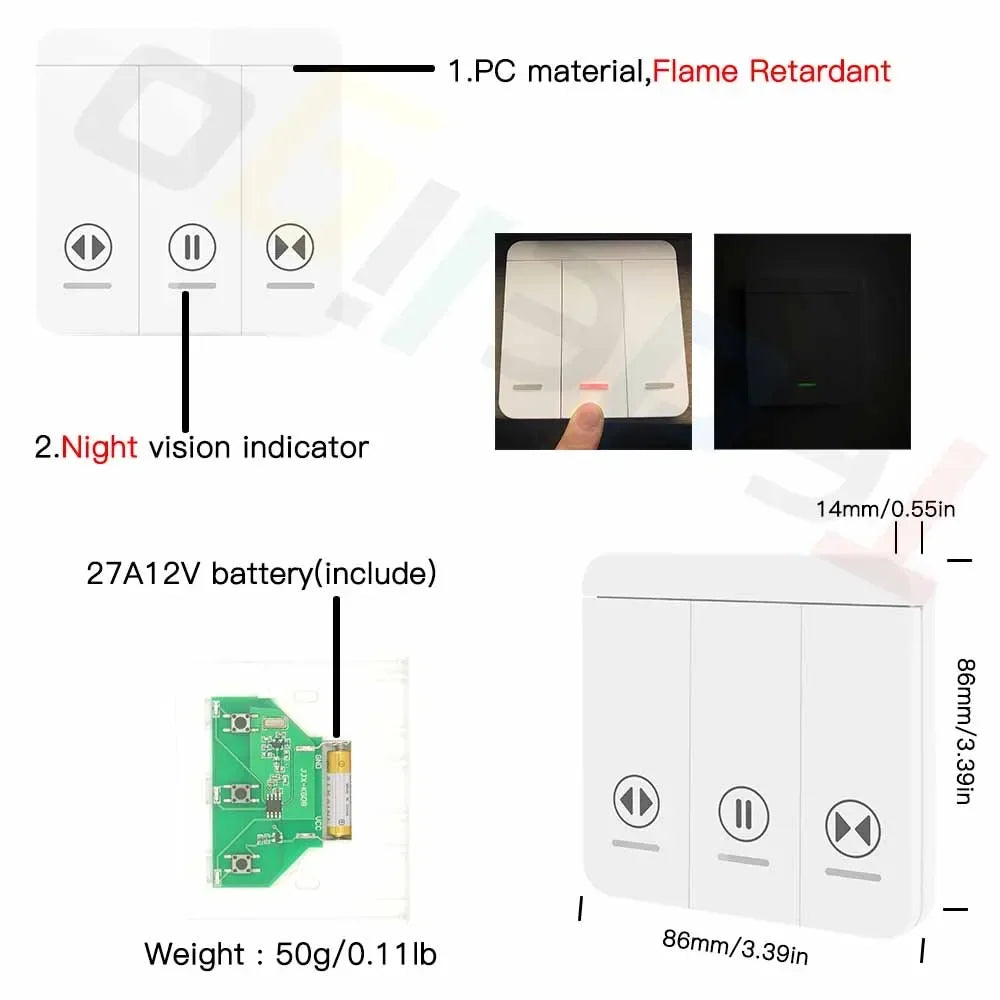

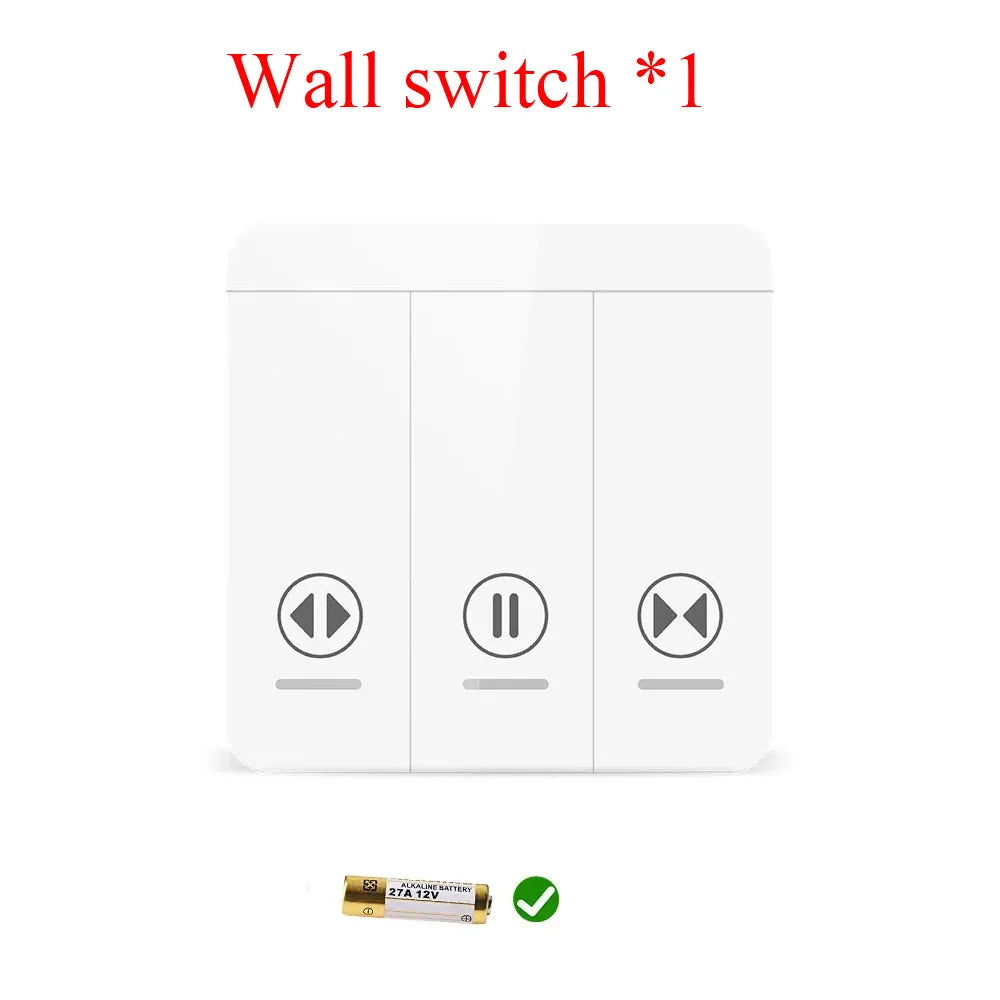

Rf Remote parameter
RF frequency : 433MHz
Size:86*86 mm
Support encoding : 1527 Leaning code
Remote distance : up to 30 meters (theoretical distance)
Battery : 23A 12V(Battery included )
How to work in RF way
1:Press and hold the learning button until the Led light flashes once;
2:Press UP remote button 1 time,Succeed.
How to clean RF data
Press learning button 8 times
How to work in WiFi
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
How to get the Alexa signal
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.
Questions and Answers
1.Can one module be controlled by multi remotes ?
Yes.Of course.One receiver can be controlled by almost 5 pcs remotes
2.Can i use my own remote to control this module? The frequency are same
Sorry,sir.The remote and module are custom.Please donot use them individually.Also, they cannot work with other brand products
3.Do you have a whole sales price?
Yes,please contact with us.We will give you the best price.
On this product detailed page, there is a demonstration video for your reference.
*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.
